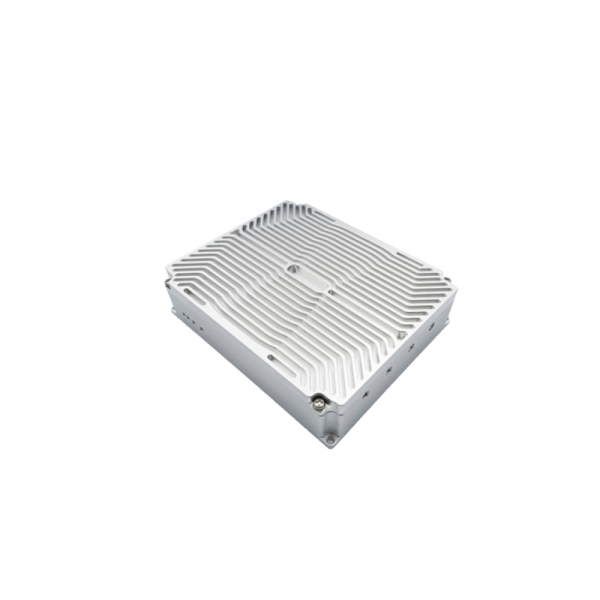

MX-6012A WIFI6 AP/無線路由器/網關/2T2R 802.11ax無線接入點
MX-6012A WIFI6 AP/無線路由器/網關/2T2R 802.11ax無線接入點
產品類別： WiFi主板系列
MX-6012A是一個完整的802.11 g/gn/an/ac/ax Wi-Fi6解決方案。產品基于單芯片IPQ6000，集成了四核ARM Cortex-A53 1.2GHz CPU和帶有外部FEM的雙頻802.11 g/gn/an/ac/ax 2x2 MIMO MAC/BB/無線電。
規格書 聯系碼訊 申請樣機
產品概述
MX-6012A是一個完整的802.11 g/gn/an/ac/ax Wi-Fi6解決方案，針對低功耗、低成本和高度集成的AP進行了優化。
該產品基于單芯片IPQ6000，集成了四核ARM Cortex-A53 1.2GHz CPU和帶有外部FEM的雙頻802.11 g/gn/an/ac/ax 2x2 MIMO MAC/BB/無線電。它支持802.11 ax操作，對于80MHz，最高可達1700 Mbps。
產品特征
- 高通Atheros IPQ6000四核ARM 64位A53 1.2GHz處理器
- 2x2 2.4GHz無線電，物理數據速率高達573Mbps
- 2x2 5.8GHz無線電，物理數據速率高達1201Mbps
- 支持動態頻率選擇（DFS）
- DDR3內存高達3 GB
- 最高256MB（32MB）的SPI或閃存
- 高達256MB的NAND閃存
- 支持Uart/GPIO/LED
- WAN接口：1*100Mbps（GH1.25mm 6P帶鎖扣）
- LAN接口：1*100/1000Mbps（GH1.25mm 8P帶鎖扣）
- DC供電：DC12/2A（GH1.25mm 4P帶鎖扣）
推薦運行額定值
|
要素 |
最小值 |
標準值 |
最大值 |
單位 |
|
工作溫度 |
-20 |
25 |
70 |
℃ |
|
VDD 12V |
11.80 |
12.00 |
12.20 |
V |
|
VDD IO |
1.6 |
1.8 or 3.3 |
3.6 |
V |
直流特性
|
要素 |
最小值 |
標準值 |
最大值 |
單位 |
|
備用物品 |
- |
15 |
- |
mA |
|
Tx電流（4通道） |
- |
950 |
- |
mA |
|
接收電流（4通道） |
- |
250 |
- |
mA |
環境條件
|
溫度 |
工作溫度： -20℃ ~ 55℃ 存儲溫度：-40℃ ~ 85℃ |
|
濕度 |
工作濕度：5% ~ 95% 存儲濕度：5% ~ 95% |
|
VESD |
人體模型：-2000V ~ +2000V 機器模式：-200V ~ +200V |
射頻參數（2GHz）
|
速率 |
發射功率 （單通道） |
發射功率 （雙通道） |
公差 |
接收靈敏度 |
公差 |
|
|
2GHz 802.11b |
1Mbps |
20dBm |
23dBm |
±2dB |
-101dBm |
±2dB |
|
2Mbps |
20dBm |
23dBm |
±2dB |
-99dBm |
±2dB |
|
|
5.5Mbps |
20dBm |
23dBm |
±2dB |
-97dBm |
±2dB |
|
|
11Mbps |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
|
2GHz 802.11g |
6Mbps |
20dBm |
23dBm |
±2dB |
-97dBm |
±2dB |
|
9Mbps |
20dBm |
23dBm |
±2dB |
-95dBm |
±2dB |
|
|
12Mbps |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
18Mbps |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
24Mbps |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
36Mbps |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
48Mbps |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
54Mbps |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
2GHz 802.11n HT20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-96dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-80dBm |
±2dB |
|
|
2GHz 802.11n HT40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-77dBm |
±2dB |
|
速率 |
發射功率 （單通道） |
發射功率 （雙通道） |
公差 |
接收靈敏度 |
公差 |
|
|
2GHz 802.11ax HE20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-97dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-95dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-69dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-66dBm |
±2dB |
|
|
2GHz 802.11ax HE40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-95dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-93dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-69dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-66dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-64dBm |
±2dB |
射頻參數（5GHz）
|
速率 |
發射功率 （單通道） |
發射功率 （雙通道） |
公差 |
接收靈敏度 |
公差 |
|
|
5GHz 802.11a |
6Mbps |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
9Mbps |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
12Mbps |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
|
18Mbps |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
24Mbps |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
36Mbps |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
48Mbps |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
54Mbps |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
5GHz 802.11n/ac VHT20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-77dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-75dBm |
±2dB |
|
|
5GHz 802.11n/ac VHT40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-90dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-82dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-79dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-76dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-73dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-70dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-67dBm |
±2dB |
|
|
5GHz 802.11ac VHT80 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-73dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-70dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-67dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-64dBm |
±2dB |
|
速率 |
發射功率 （單通道） |
發射功率 （雙通道） |
公差 |
接收靈敏度 |
公差 |
|
|
5GHz 802.11ax HET20 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-94dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-92dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-77dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-74dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-71dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-68dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-65dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-62dBm |
±2dB |
|
|
5GHz 802.11ax HE40 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-89dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-69dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-66dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-63dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-60dBm |
±2dB |
|
|
5GHz 802.11ax HE80 |
MCS 0 |
20dBm |
23dBm |
±2dB |
-86dBm |
±2dB |
|
MCS 1 |
20dBm |
23dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS 2 |
20dBm |
23dBm |
±2dB |
-81dBm |
±2dB |
|
|
MCS 3 |
20dBm |
23dBm |
±2dB |
-79dBm |
±2dB |
|
|
MCS 4 |
20dBm |
23dBm |
±2dB |
-76dBm |
±2dB |
|
|
MCS 5 |
20dBm |
23dBm |
±2dB |
-74dBm |
±2dB |
|
|
MCS 6 |
20dBm |
23dBm |
±2dB |
-71dBm |
±2dB |
|
|
MCS 7 |
19dBm |
22dBm |
±2dB |
-68dBm |
±2dB |
|
|
MCS 8 |
18dBm |
21dBm |
±2dB |
-65dBm |
±2dB |
|
|
MCS 9 |
18dBm |
21dBm |
±2dB |
-62dBm |
±2dB |
|
|
MCS 10 |
16dBm |
19dBm |
±2dB |
-59dBm |
±2dB |
|
|
MCS 11 |
15dBm |
18dBm |
±2dB |
-56dBm |
±2dB |
產品尺寸
